- Description
| Specificity Profile | More Information |
|

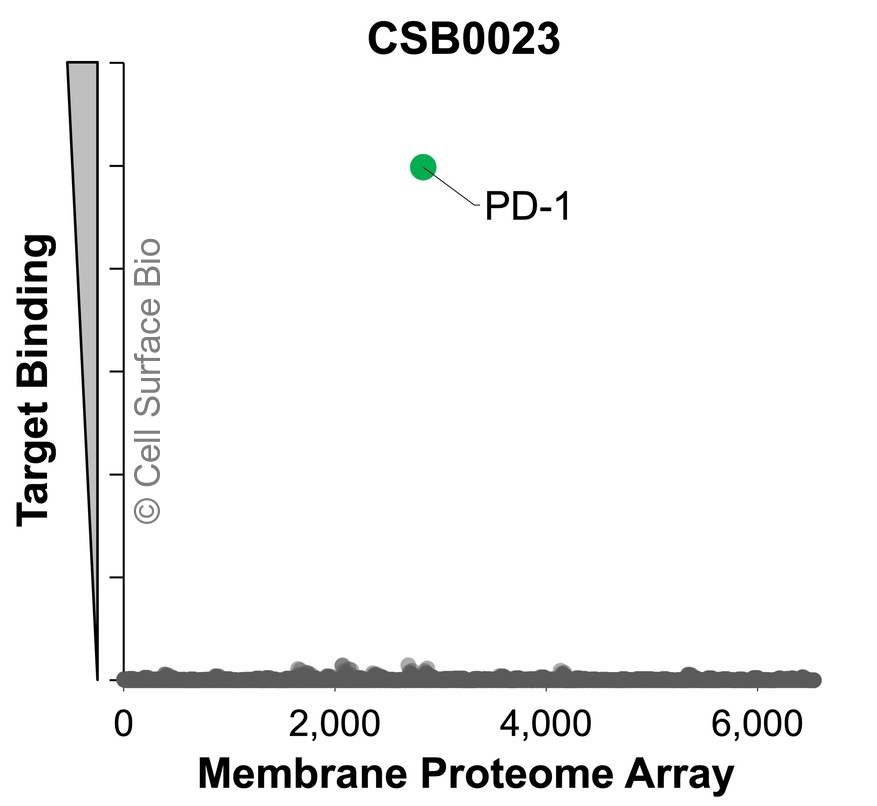

The specificity of PD-1 Monoclonal Antibody (CSB0023) was tested on the Membrane Proteome Array® and shown to be specific for human PD-1. The Membrane Proteome Array® contains 6,000 different human membrane proteins, each expressed in unfixed human cells to ensure native conformation and post-translational modifications. The Membrane Proteome Array® represents the industry standard for determining the binding specificity of antibodies and other protein ligands. |
| Application | Conditions | Recommended Concentration |
| Flow Cytometry, Extracellular | Live, Unpermeabilized | 1 µg/ml |
|

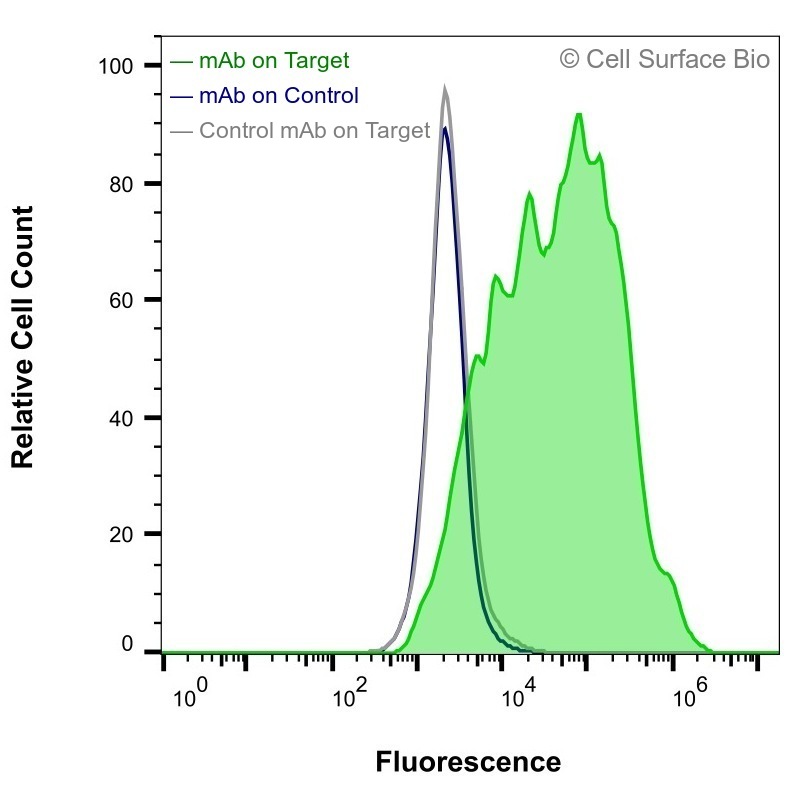

HEK-293F cells transiently transfected with human PD-1 were stained with PD-1 Monoclonal Antibody (CSB0023) (green) or isotype control antibody (gray), followed by AlexaFluor 647- conjugated anti-Mouse IgG secondary antibody. HEK-293F cells transiently transfected with an empty control vector were also stained with PD-1 Monoclonal Antibody (CSB0023) (blue). | |
| Application | Conditions | Recommended Concentration |
| Immunofluorescence, Extracellular | Fixed 4% paraformaldehyde | 1 µg/ml |
|
(Left) COS-7 cells transiently transfected human PD-1 were stained with PD-1 Monoclonal Antibody (CSB0023) followed by AlexaFluor 647 anti-Mouse IgG secondary antibody (red) and DAPI (blue). (Top right) COS-7 cells transiently transfected with an empty control vector stained with PD-1 Monoclonal Antibody. (Bottom right) Isotype control: COS-7 cells transfected with human PD-1 and stained with control MAb. | |
| Application | Conditions | Recommended Concentration |
| Immunofluorescence, Intracellular | Fixed 4% paraformaldehyde, Permeabilized 0.1% Triton X-100 | 1 µg/ml |
|
(Left) COS-7 cells transiently transfected human PD-1 were permeabilized and stained with PD-1 Monoclonal Antibody (CSB0023) followed by AlexaFluor 647 anti-Mouse IgG secondary antibody (red) and DAPI (blue). (Top right) COS-7 cells transiently transfected with an empty control vector stained with PD-1 Monoclonal Antibody. (Bottom right) Isotype control: COS-7 cells transfected with human PD-1 and stained with control MAb. | |
CSB VeRSaMAbs:
We produce and validate all our monoclonal antibodies
in-house so that you can confidently choose the right antibody for your assay. All antibodies are
VALIDATED for common applications, RECOMBINANT for batch-to-batch consistency, and
SPECIFIC in binding to only your target.
| Target | PD-1 |
| Target Aliases | PD1, PDCD1, CD279, HSLE1, SLEB2, HPD-1, HPD-L |
| Isotype | Mouse IgG2a |
| Membrane Proteome Specificity | Monospecific for 6,000 membrane proteins tested |
| Species Reactivity | Human (Others untested) |
| Fc Modifications | C-terminal Avitag, disabled Fc-gamma receptor binding |
| Source | Recombinant CHO expression; purified by Protein A chromatography |
| Formulation | Endotoxin Free PBS pH 7.4, sterile-filtered |
| Concentration | 1 mg/ml |
Stable for 12 months from date of receipt when stored at 4°C. Avoid repeated freeze-thaw cycles.
PD-1 is single-pass transmembrane protein and an immune-inhibitory receptor on activated T-cells. PD-1 plays a role in regulation of T-cell functions and is important for protecting against autoimmunity. PD-1 can also inhibit anti-microbial and anti-tumor immunity, and is expressed in various tumors, including melanomas. (NCBI Gene: 5133, UniProtKB/Swiss-Prot: Q15116) Other names: PD1, PDCD1, CD279, HSLE1, SLEB2, HPD-1, HPD-L
